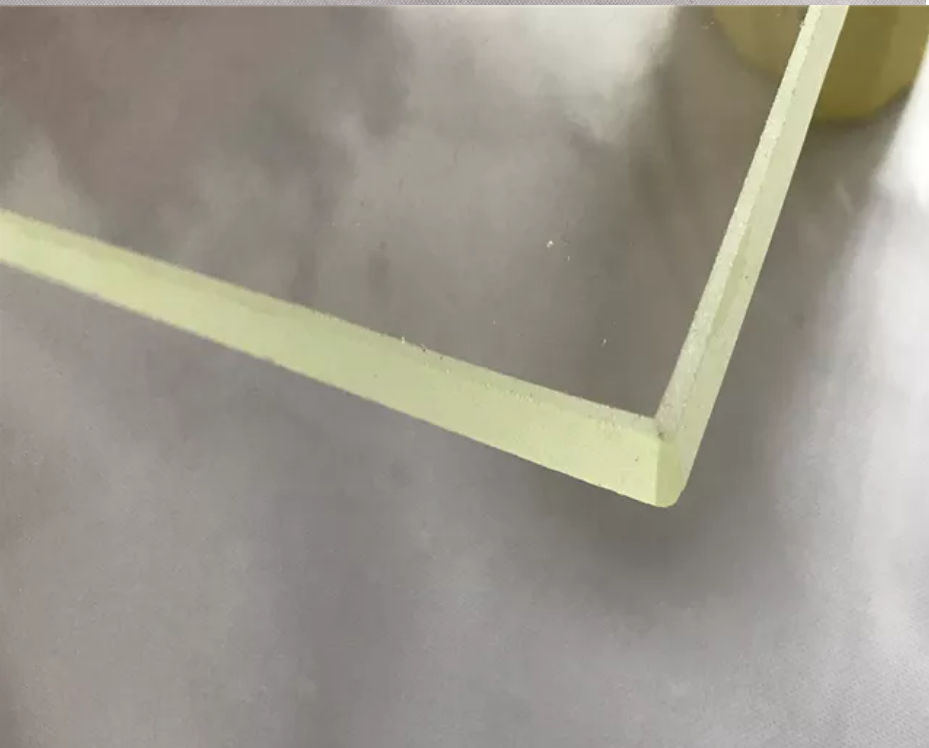

X Ray Room Window 18mm Thickness Radiation Protection Lead Glass
Specification
The lead glass of our products are divided into ZF2, ZF3, ZF6, and ZF7 series ZF2 and ZF3 series high
lead glass is extensively applied as shield in X-ray diagnosis, spiral CT scanning room viewport and
medical diagnosis. ZF6 and ZF7 series high lead glass is mainly used in nuclear industry such as nuclear
power station and atomic energy application.
Since our products were launched into the market, with good transparency, high lead equivalency and
excellent service, we get trust and favorable comments from users. Since 2003, we have successfully
exported them to Southeast Asian markets as well as the United States, South Korea, Singapore and
some African countries, which have created good economic benefits and enterprise reputation for our company.
| | 8mm | 10mm | 12mm | 15mm | 18mm | 20mm | 25mm |
| ( 1.7mmpb) | ( 2.1mmpb) | ( 2.6mmpb) | ( 3.3 mmpb) | ( 3.96 mmpb) | ( 4.4 mmpb) | ( 6.71 mmpb) |
| 200* 300 | 200* 300* 8 | 200* 300* 10 | 200* 300* 12 | 200* 300* 15 | 200* 300* 18 | 200* 300* 20 | - |
| 300* 400 | 300* 400* 8 | 300* 400* 10 | 300* 400* 12 | 300* 400* 15 | 300* 400* 18 | 300* 400* 20 | - |
| 400* 600 | 400* 600* 8 | 400* 600* 10 | 400* 600* 12 | 400* 600* 15 | 400* 600* 18 | 400* 600* 20 | - |
| 600* 800 | 600* 800* 8 | 600* 800* 10 | 600* 800* 12 | 600* 800* 15 | 600* 800* 18 | 600* 800* 20 | - |
| 600* 900 | 600* 900* 8 | 600* 900* 10 | 600* 900* 12 | 600* 900* 15 | 600* 900* 18 | 600* 900* 20 | - |
| 1000* 800 | 1000* 800* 8 | 1000* 800* 10 | 1000* 800* 12 | 1000* 800* 15 | 1000* 800* 18 | 1000* 800* 20 | 1000* 800* 25 |
| 1200* 800 | 1200* 800* 8 | 1200* 800* 10 | 1200* 800* 12 | 1200* 800* 15 | 1200* 800* 18 | 1200* 800* 20 | 1200* 800* 25 |
| 1200* 900 | 1200* 900* 8 | 1200* 900* 10 | 1200* 900* 12 | 1200* 900* 15 | 1200* 900* 18 | 1200* 900* 20 | 1200* 900* 25 |
| 1200* 1000 | 1200* 1000* 8 | 1200* 1000* 10 | 1200* 1000* 12 | 1200* 1000* 15 | 1200* 1000* 18 | 1200* 1000* 20 | 1200* 1000* 25 |
| 1200* 1200 | - | 1200* 1200* 10 | 1200* 1200* 12 | 1200* 1200* 15 | 1200* 1200* 18 | 1200* 1200* 20 | 1200* 1200* 25 |
| 1500* 900 | - | 1500* 900* 10 | 1500* 900* 12 | 1500* 900* 15 | 1500* 900* 18 | 1500* 900* 20 | 1500* 900* 25 |
| 1500* 1000 | - | 1500* 1000* 10 | 1500* 1000* 12 | 1500* 1000* 15 | 1500* 1000* 18 | 1500* 1000* 20 | 1500* 1000* 25 |
| 1500* 1200 | - | 1500* 1200* 10 | 1500* 1200* 12 | 1500* 1200* 15 | 1500* 1200* 18 | 1500* 1200* 20 | 1500* 1200* 25 |
| 1600* 1000 | - | 1600* 1000* 10 | 1600* 1000* 12 | 1600* 1000* 15 | 1600* 1000* 18 | 1600* 1000* 20 | 1600* 1000* 25 |
| 1600* 1200 | - | 1600* 1200* 10 | 1600* 1200* 12 | 1600* 1200* 15 | 1600* 1200* 18 | 1600* 1200* 20 | 1600* 1200* 25 |
| 1800* 1000 | - | 1800* 1000* 10 | 1800* 1000* 12 | 1800* 1000* 15 | 1800* 1000* 18 | 1800* 1000* 20 | 1800* 1000* 25 |
| 1800* 1200 | - | 1800* 1200* 10 | 1800* 1200* 12 | 1800* 1200* 15 | 1800* 1200* 18 | 1800* 1200* 20 | 1800* 1200* 25 |
| 2000* 1000 | - | 2000* 1000* 10 | 2000* 1000* 12 | 2000* 1000* 15 | 2000* 1000* 18 | 2000* 1000* 20 | 2000* 1000* 25 |
| 2000* 1200 | - | 2000* 1200* 10 | 2000* 1200* 12 | 2000* 1200* 15 | 2000* 1200* 18 | 2000* 1200* 20 | 2000* 1200* 25 |
| 2400* 1200 | - | 2400* 1200* 10 | 2400* 1200* 12 | 2400* 1200* 15 | 2400* 1200* 18 | 2400* 1200* 20 | 2400* 1200* 25 |
Application
Δ X-ray shielding in hospitals
Δ X-ray rooms MRI scanning
Δ observations windows
Δ door glazing
Δ nuclear medicine application
Δ special mitre joint and lamination with float glass allow extended window sizes, creating better
observation environments
Δ multiple glazing units providing shaped observation solutions
Disinfection of Radiation Shielding Glass
Δ only use water, a mild detergent and a soft cloth
Δ Lead glass can be disinfected using commercially available disinfectants that has approved.
Disinfection using ultraviolet irradiation is also possible
Δ radiation shielding glass should never be exposed to moisture or temperature fluctuations in
conjunction with moisture and acidic air
Δ only use a sealant that is free of acids and alkaline substances (e. g. acetic acid, ammonia)
during installation. Adhesive
labels can cause discoloration if the adhesive reacts with the glass surface.
FAQ:
X Ray Room Window 18mm Thickness Radiation Protection Lead Glass
Q. What about the lead time?
A: Usually 5- 8 work days.
Q. Do you have any MOQ limit?
A: Low MOQ, 1pc is available.
Q. How do you ship the goods and how long does it take to arrive?
A: Ship by Air and Sea.
