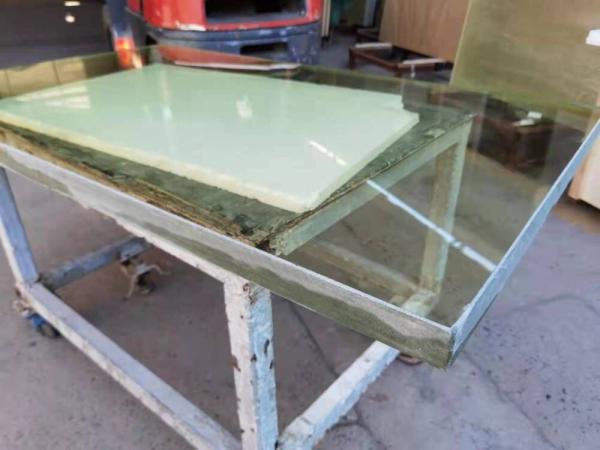

Lead Glass 8mm thickness 1.7mmPb Shielding X-ray CT Room Installation
Description:
Radiation shielding lead glass is installed in x-ray room windows to help protect against radiation exposure while allowing optimal visibility into the room while procedures are being performed.
This is vital to ensure that medical personnel keeps safe from harmful radiation. Lead glass is also used in other applications where radiation is present, such as in nuclear medicine.
In these cases, lead glass is used to shield against gamma rays, which are even more penetrating than x-rays. Lead-lined frames are also an essential component of radiation shielding, as they help to ensure that the lead glass is firmly mounted in place and that no radiation is passing through the frame.
To provide viewing of the patient in the x-ray room while providing protection to the operator,
lead glass viewing windows can be furnished in the barrier.
We provide lead glass for your project-specific requirements.
Select from standard sizes or request a quote for custom sizes or lead thicknesses.
Standard X-Ray lead glass does not meet impact resistant requirements
Many x-ray protective shielding levels available
| |
8mm |
10mm |
12mm |
15mm |
18mm |
20mm |
25mm |
| ( 1.7mmpb) |
( 2.1mmpb) |
( 2.6mmpb) |
( 3.3 mmpb) |
( 3.96 mmpb) |
( 4.4 mmpb) |
( 6.71 mmpb) |
| 200* 300 |
200* 300* 8 |
200* 300* 10 |
200* 300* 12 |
200* 300* 15 |
200* 300* 18 |
200* 300* 20 |
- |
| 300* 400 |
300* 400* 8 |
300* 400* 10 |
300* 400* 12 |
300* 400* 15 |
300* 400* 18 |
300* 400* 20 |
- |
| 400* 600 |
400* 600* 8 |
400* 600* 10 |
400* 600* 12 |
400* 600* 15 |
400* 600* 18 |
400* 600* 20 |
- |
| 600* 800 |
600* 800* 8 |
600* 800* 10 |
600* 800* 12 |
600* 800* 15 |
600* 800* 18 |
600* 800* 20 |
- |
| 600* 900 |
600* 900* 8 |
600* 900* 10 |
600* 900* 12 |
600* 900* 15 |
600* 900* 18 |
600* 900* 20 |
- |
| 1000* 800 |
1000* 800* 8 |
1000* 800* 10 |
1000* 800* 12 |
1000* 800* 15 |
1000* 800* 18 |
1000* 800* 20 |
1000* 800* 25 |
| 1200* 800 |
1200* 800* 8 |
1200* 800* 10 |
1200* 800* 12 |
1200* 800* 15 |
1200* 800* 18 |
1200* 800* 20 |
1200* 800* 25 |
| 1200* 900 |
1200* 900* 8 |
1200* 900* 10 |
1200* 900* 12 |
1200* 900* 15 |
1200* 900* 18 |
1200* 900* 20 |
1200* 900* 25 |
| 1200* 1000 |
1200* 1000* 8 |
1200* 1000* 10 |
1200* 1000* 12 |
1200* 1000* 15 |
1200* 1000* 18 |
1200* 1000* 20 |
1200* 1000* 25 |
| 1200* 1200 |
- |
1200* 1200* 10 |
1200* 1200* 12 |
1200* 1200* 15 |
1200* 1200* 18 |
1200* 1200* 20 |
1200* 1200* 25 |
| 1500* 900 |
- |
1500* 900* 10 |
1500* 900* 12 |
1500* 900* 15 |
1500* 900* 18 |
1500* 900* 20 |
1500* 900* 25 |
| 1500* 1000 |
- |
1500* 1000* 10 |
1500* 1000* 12 |
1500* 1000* 15 |
1500* 1000* 18 |
1500* 1000* 20 |
1500* 1000* 25 |
| 1500* 1200 |
- |
1500* 1200* 10 |
1500* 1200* 12 |
1500* 1200* 15 |
1500* 1200* 18 |
1500* 1200* 20 |
1500* 1200* 25 |
| 1600* 1000 |
- |
1600* 1000* 10 |
1600* 1000* 12 |
1600* 1000* 15 |
1600* 1000* 18 |
1600* 1000* 20 |
1600* 1000* 25 |
| 1600* 1200 |
- |
1600* 1200* 10 |
1600* 1200* 12 |
1600* 1200* 15 |
1600* 1200* 18 |
1600* 1200* 20 |
1600* 1200* 25 |
| 1800* 1000 |
- |
1800* 1000* 10 |
1800* 1000* 12 |
1800* 1000* 15 |
1800* 1000* 18 |
1800* 1000* 20 |
1800* 1000* 25 |
| 1800* 1200 |
- |
1800* 1200* 10 |
1800* 1200* 12 |
1800* 1200* 15 |
1800* 1200* 18 |
1800* 1200* 20 |
1800* 1200* 25 |
| 2000* 1000 |
- |
2000* 1000* 10 |
2000* 1000* 12 |
2000* 1000* 15 |
2000* 1000* 18 |
2000* 1000* 20 |
2000* 1000* 25 |
| 2000* 1200 |
- |
2000* 1200* 10 |
2000* 1200* 12 |
2000* 1200* 15 |
2000* 1200* 18 |
2000* 1200* 20 |
2000* 1200* 25 |
| 2400* 1200 |
- |
2400* 1200* 10 |
2400* 1200* 12 |
2400* 1200* 15 |
2400* 1200* 18 |
2400* 1200* 20 |
2400* 1200* 25 |
FAQ:
WHY PROTECTION FROM RADIATION IS IMPORTANT?
Of course, we all know that too much exposure to radiation can be dangerous. But what many people don’t realize is that even small amounts of radiation exposure can add up over time and lead to health problems. That’s why it’s so important to make sure that you are protected from radiation with lead glass and lead lined frames whenever you are in a situation where there is a potential for exposure. X-rays produce ionizing radiation, which can damage cells in your body and lead to a wide range of serious health problems.
HOW IS LEAD GLASS FOR AN X-RAY WINDOW MADE?
Lead glass is made by adding lead oxide to molten glass, which gives it its characteristic heavy weight and high density. This makes it an ideal material for radiation shielding, as it is able to block a large amount of radiation. Lead glass x-ray windows are typically much thicker than regular glass windows, as they need to be able to block a higher level of radiation.
