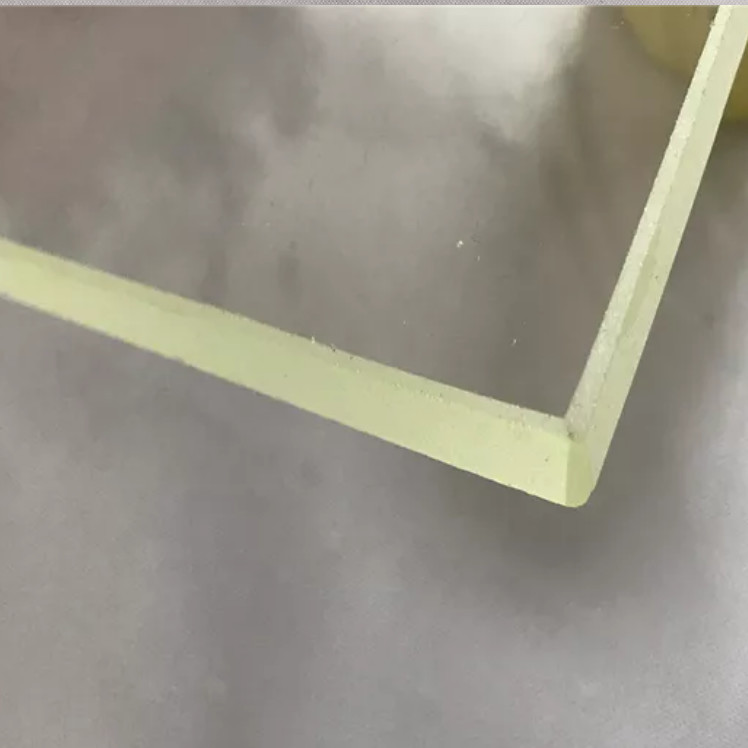

10mm 2.1mmpb Radiation Protection Customized Special Size Lead Glass
Quick Detail:
· Thickness 8/ 10/ 12/ 15/ 18/ 20/ 23/ 25mm
· Lead equivalent 1.7/ 2.1/ 2.6/ 3.3/ 3.96/ 4.4/ 5.8/ 6.71mmpb
· Size from 200* 300mm to 1200* 2400mm
· Stainless Steel frame
· Packing in wooden case
· CE Certificate
Specification:
| | 8mm | 10mm | 12mm | 15mm | 18mm | 20mm | 25mm |
| ( 1.7mmpb) | ( 2.1mmpb) | ( 2.6mmpb) | ( 3.3 mmpb) | ( 3.96 mmpb) | ( 4.4 mmpb) | ( 6.71 mmpb) |
| 200* 300 | 200* 300* 8 | 200* 300* 10 | 200* 300* 12 | 200* 300* 15 | 200* 300* 18 | 200* 300* 20 | - |
| 300* 400 | 300* 400* 8 | 300* 400* 10 | 300* 400* 12 | 300* 400* 15 | 300* 400* 18 | 300* 400* 20 | - |
| 400* 600 | 400* 600* 8 | 400* 600* 10 | 400* 600* 12 | 400* 600* 15 | 400* 600* 18 | 400* 600* 20 | - |
| 600* 800 | 600* 800* 8 | 600* 800* 10 | 600* 800* 12 | 600* 800* 15 | 600* 800* 18 | 600* 800* 20 | - |
| 600* 900 | 600* 900* 8 | 600* 900* 10 | 600* 900* 12 | 600* 900* 15 | 600* 900* 18 | 600* 900* 20 | - |
| 1000* 800 | 1000* 800* 8 | 1000* 800* 10 | 1000* 800* 12 | 1000* 800* 15 | 1000* 800* 18 | 1000* 800* 20 | 1000* 800* 25 |
| 1200* 800 | 1200* 800* 8 | 1200* 800* 10 | 1200* 800* 12 | 1200* 800* 15 | 1200* 800* 18 | 1200* 800* 20 | 1200* 800* 25 |
| 1200* 900 | 1200* 900* 8 | 1200* 900* 10 | 1200* 900* 12 | 1200* 900* 15 | 1200* 900* 18 | 1200* 900* 20 | 1200* 900* 25 |
| 1200* 1000 | 1200* 1000* 8 | 1200* 1000* 10 | 1200* 1000* 12 | 1200* 1000* 15 | 1200* 1000* 18 | 1200* 1000* 20 | 1200* 1000* 25 |
| 1200* 1200 | - | 1200* 1200* 10 | 1200* 1200* 12 | 1200* 1200* 15 | 1200* 1200* 18 | 1200* 1200* 20 | 1200* 1200* 25 |
| 1500* 900 | - | 1500* 900* 10 | 1500* 900* 12 | 1500* 900* 15 | 1500* 900* 18 | 1500* 900* 20 | 1500* 900* 25 |
| 1500* 1000 | - | 1500* 1000* 10 | 1500* 1000* 12 | 1500* 1000* 15 | 1500* 1000* 18 | 1500* 1000* 20 | 1500* 1000* 25 |
| 1500* 1200 | - | 1500* 1200* 10 | 1500* 1200* 12 | 1500* 1200* 15 | 1500* 1200* 18 | 1500* 1200* 20 | 1500* 1200* 25 |
| 1600* 1000 | - | 1600* 1000* 10 | 1600* 1000* 12 | 1600* 1000* 15 | 1600* 1000* 18 | 1600* 1000* 20 | 1600* 1000* 25 |
| 1600* 1200 | - | 1600* 1200* 10 | 1600* 1200* 12 | 1600* 1200* 15 | 1600* 1200* 18 | 1600* 1200* 20 | 1600* 1200* 25 |
| 1800* 1000 | - | 1800* 1000* 10 | 1800* 1000* 12 | 1800* 1000* 15 | 1800* 1000* 18 | 1800* 1000* 20 | 1800* 1000* 25 |
| 1800* 1200 | - | 1800* 1200* 10 | 1800* 1200* 12 | 1800* 1200* 15 | 1800* 1200* 18 | 1800* 1200* 20 | 1800* 1200* 25 |
| 2000* 1000 | - | 2000* 1000* 10 | 2000* 1000* 12 | 2000* 1000* 15 | 2000* 1000* 18 | 2000* 1000* 20 | 2000* 1000* 25 |
| 2000* 1200 | - | 2000* 1200* 10 | 2000* 1200* 12 | 2000* 1200* 15 | 2000* 1200* 18 | 2000* 1200* 20 | 2000* 1200* 25 |
| 2400* 1200 | - | 2400* 1200* 10 | 2400* 1200* 12 | 2400* 1200* 15 | 2400* 1200* 18 | 2400* 1200* 20 | 2400* 1200* 25 |
Description:
Lead glass is widely and mainly used for Xray CT Installation Projects.
To provide viewing of the patient in the x-ray room while providing protection to the operator, lead glass
viewing windows can be furnished in the barrier.
Lead glass can be installed in multiple layers so as to provide a lead equivalency to the lead in the wall in
which it is installed.
Application:
Lead glass is mainly used in the manufacturing of optical instruments, art vessels, etc; and is also known
as medical X- ray radiation-proof lead glass plate in the medical field.
Lead glass is mainly used for diagnostic, CT, ECT, PET, ct- pet and other machine rooms, as well as
observation Windows on the protective screen of protective doors.
FAQ:
10mm 2.1mmpb Radiation Protection Customized Special Size Lead Glass
Q1. What about the lead time?
A: Usually 5-7 working days.
Q2. Can I have a sample order for lead glass?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc is available.
Q4. How to proceed an order for lead glass?
A: Firstly let us know your requirements or size, thickenss and also quantity.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms.
Fourthly We arrange the production.
