Xray CT Room Installation Material Lead Glass
Jovi’s x-ray lead glass is specifically formulated to efficiently attenuate and shield x-ray gamma radiation.
We utilize a unique combination of a heavy density blend and proprietary high content composition of heavy oxides and minerals. This provides maximum radiation shielding performance while minimizing glass thickness.
The glass maintains excellent clarity and a non-browning optimal level of light transmission.
Our lead glass provides code compliant radiation life and safety protection for the medical technician while also allowing a clear view of the patient during critical medical diagnostic imaging procedures.
Quick Detail:
·Size can be with customized
·Thickness 15mm
·with frame available
·Packing in wooden case
·CE Certificate
Application
The properties of lead glass make it useful for many applications. The majority of them, however, make use of its optical properties, in particular. Here are a few examples:
Lead glass almost used in the manufacturing of optical instruments, art vessels, etc.
And known as medical X- ray radiation-proof lead glass plate in the medical field.
We can offer different thickness and customized size of lead glass for you.
In usual, 1200mm*800mm is our hot-sale product.
It is widely used for Xray CT Installation Projects.
Lead glass is thus more fluid and easier to work with and fabricate than soda glass because it can be worked on at
a wider temperature range while still being more malleable and less brittle than ordinary glass.
Specification
| | 8mm | 10mm | 12mm | 15mm | 18mm | 20mm | 25mm |
| | ( 1.7mmpb) | ( 2.1mmpb) | ( 2.6mmpb) | ( 3.3 mmpb) | ( 3.96 mmpb) | ( 4.4 mmpb) | ( 6.71 mmpb) |
| 200* 300 | 200* 300* 8 | 200* 300* 10 | 200* 300* 12 | 200* 300* 15 | 200* 300* 18 | 200* 300* 20 | - |
| 300* 400 | 300* 400* 8 | 300* 400* 10 | 300* 400* 12 | 300* 400* 15 | 300* 400* 18 | 300* 400* 20 | - |
| 400* 600 | 400* 600* 8 | 400* 600* 10 | 400* 600* 12 | 400* 600* 15 | 400* 600* 18 | 400* 600* 20 | - |
| 600* 800 | 600* 800* 8 | 600* 800* 10 | 600* 800* 12 | 600* 800* 15 | 600* 800* 18 | 600* 800* 20 | - |
| 600* 900 | 600* 900* 8 | 600* 900* 10 | 600* 900* 12 | 600* 900* 15 | 600* 900* 18 | 600* 900* 20 | - |
| 1000* 800 | 1000* 800* 8 | 1000* 800* 10 | 1000* 800* 12 | 1000* 800* 15 | 1000* 800* 18 | 1000* 800* 20 | 1000* 800* 25 |
| 1200* 800 | 1200* 800* 8 | 1200* 800* 10 | 1200* 800* 12 | 1200* 800* 15 | 1200* 800* 18 | 1200* 800* 20 | 1200* 800* 25 |
| 1200* 900 | 1200* 900* 8 | 1200* 900* 10 | 1200* 900* 12 | 1200* 900* 15 | 1200* 900* 18 | 1200* 900* 20 | 1200* 900* 25 |
| 1200* 1000 | 1200* 1000* 8 | 1200* 1000* 10 | 1200* 1000* 12 | 1200* 1000* 15 | 1200* 1000* 18 | 1200* 1000* 20 | 1200* 1000* 25 |
| 1200* 1200 | - | 1200* 1200* 10 | 1200* 1200* 12 | 1200* 1200* 15 | 1200* 1200* 18 | 1200* 1200* 20 | 1200* 1200* 25 |
| 1500* 900 | - | 1500* 900* 10 | 1500* 900* 12 | 1500* 900* 15 | 1500* 900* 18 | 1500* 900* 20 | 1500* 900* 25 |
| 1500* 1000 | - | 1500* 1000* 10 | 1500* 1000* 12 | 1500* 1000* 15 | 1500* 1000* 18 | 1500* 1000* 20 | 1500* 1000* 25 |
| 1500* 1200 | - | 1500* 1200* 10 | 1500* 1200* 12 | 1500* 1200* 15 | 1500* 1200* 18 | 1500* 1200* 20 | 1500* 1200* 25 |
| 1600* 1000 | - | 1600* 1000* 10 | 1600* 1000* 12 | 1600* 1000* 15 | 1600* 1000* 18 | 1600* 1000* 20 | 1600* 1000* 25 |
| 1600* 1200 | - | 1600* 1200* 10 | 1600* 1200* 12 | 1600* 1200* 15 | 1600* 1200* 18 | 1600* 1200* 20 | 1600* 1200* 25 |
| 1800* 1000 | - | 1800* 1000* 10 | 1800* 1000* 12 | 1800* 1000* 15 | 1800* 1000* 18 | 1800* 1000* 20 | 1800* 1000* 25 |
| 1800* 1200 | - | 1800* 1200* 10 | 1800* 1200* 12 | 1800* 1200* 15 | 1800* 1200* 18 | 1800* 1200* 20 | 1800* 1200* 25 |
| 2000* 1000 | - | 2000* 1000* 10 | 2000* 1000* 12 | 2000* 1000* 15 | 2000* 1000* 18 | 2000* 1000* 20 | 2000* 1000* 25 |
| 2000* 1200 | - | 2000* 1200* 10 | 2000* 1200* 12 | 2000* 1200* 15 | 2000* 1200* 18 | 2000* 1200* 20 | 2000* 1200* 25 |
| 2400* 1200 | - | 2400* 1200* 10 | 2400* 1200* 12 | 2400* 1200* 15 | 2400* 1200* 18 | 2400* 1200* 20 | 2400* 1200* 25 |

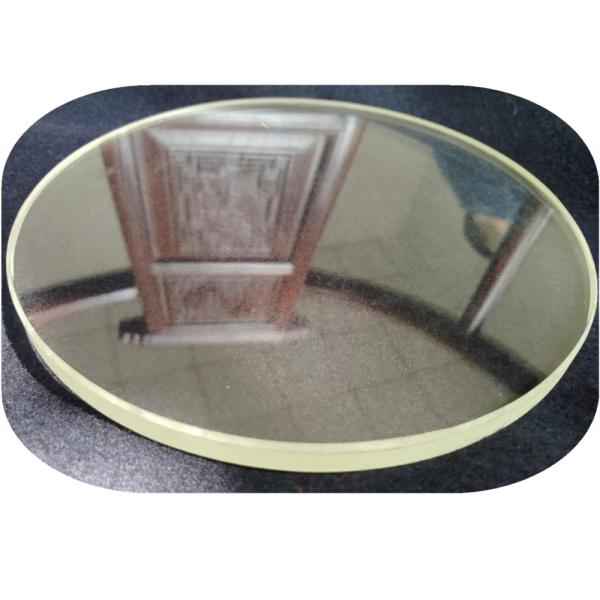

- Circles or discs are also available
- X-Ray lead glass is not tempered or fire rated
We will also customize the size according to customer requirements, the largest size we have customized is as follows
1500mm size x 3000mm size for their CT Rooom installation.
Packing & Delivery

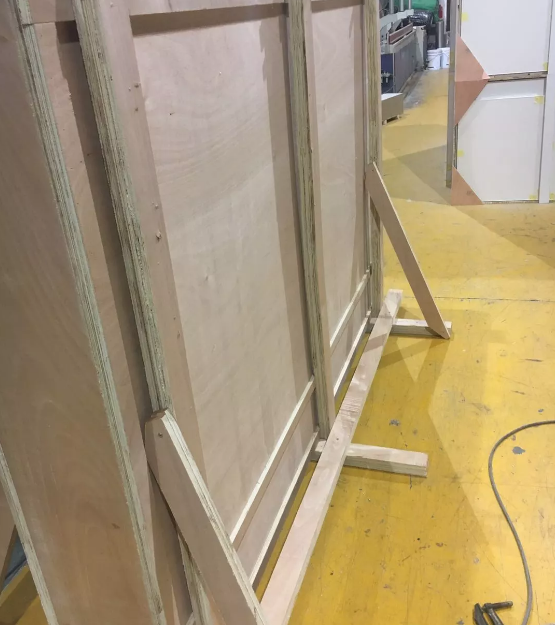

Our lead glass will be packed in wooden case for well protection and water and dirt proof.
After-Service:
1. Delivery within 10 days after receiving payments.
2. Offer Different Shipping Ways to our customers.
3. Track the order until you get the products
4. In usual, sea port we used is in Tianjin, Shenzhen...
5. Shaped in sheet, and packed in wooden case.
