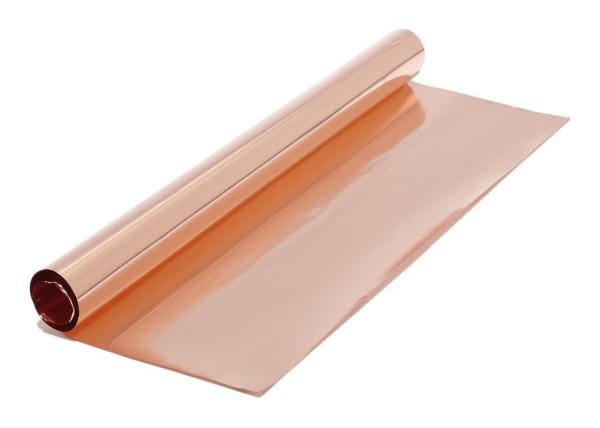

MRI Room 3oz 1320mm Copper Foil Shielding Strip
Quick Detail:
1. 3oz 1320mm width
2. Roll shape and in wooden case
3. Using for MRI RF Room or Faraday Cage Shielding Field
4. High Elongation and high tensile performance
Description:
1. Lightweight
2. High-performance, vertically-supported modular enclosure
3. Copper Serves as an eddy current shield for EMI Protection.
4. Copper with 1320mm width or wider, can be more easy to install, especially for roofing, wall and floor.
5. Copper is durable, has superior electrical conductivity and is extremely corrosion resistant.
6. Necessary to prevent RF noise from entering into the MRI scanner and distorting the image. Copper is
generally considered the best shielding for MRI rooms compared with Al and GL..
7. Copper serves as an eddy current shield for EMI protection
Specification:
| Quality Items | General Technical Terms |
| Normal Thickness | 2oz | 3oz | 4oz | 5oz | 6oz |
| 0.07mm | 0.105mm | 0.140mm | 0.175mm | 0.210mm |
| Area Weight(g/m2) | 560-610 | 838-960 | 1100-1280 | 1380-1600 | 1650-1920 |
| Tensile Strength | Room Temperature | ≥28 | ≥28 | ≥28 | ≥28 | ≥28 |
| (kg/mm2) |
| Elongation | Room Temperature | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 |
| (%) |
| Leakage Points (points/m2) | No |
| High Temperature Anti-Oxidization Performance(180℃/h) | No Oxidization |
| Width Tolerance | (+2.0,-2.0) |
FAQ:
1. What is the delivery time?
5-8 working days after receiving payment.
2. What service can you offer?
High-quality products, competitive price, warmly following until you receive, and technical support during use.
3. What is MOQ?
200 - 250kg per roll.
