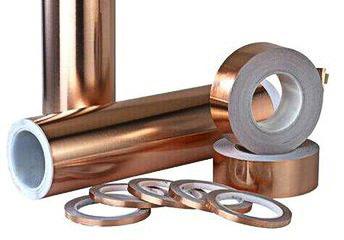

MRI Room Conductive 0.15mm thickness Copper Tape Double Adhesive Emi Shielding
Product Description
The purity of copper foil is higher than 99.95%, and its function is to eliminate electromagnetic(EMI)
interference, isolate electromagnetic waves on the human body injury, avoid unwanted voltage and
current without affecting functionality.
In addition, electrostatic discharge after the ground has a good effect.
Specification of 0.06mm thickness copper tape
| Specification(0.06mm thickness) |
| Item |
Unit |
Specification |
Texting Standard |
Texting Method |
Others |
| Copper Thickness |
u |
25 |
25± 3 |
|
|
| Basis Weight |
g/ m2 |
160 |
160± 10 |
|
|
| Copper Foil |
% |
99.95 |
99.95 |
|
|
| Glue Thickness |
u |
35 |
35+ 3 |
ASTM- 1000 |
|
| Composition |
----- |
Acrylic glue |
Acrylic glue |
|
|
| Total thickness |
u |
60 |
60+5 |
|
|
| Steel Adhesion |
kg/ 1" |
0.8 |
0.8 |
ASTM- 1000 |
Initial adhesion tester |
| Initial Adhesion |
kg/ 1" |
1 |
1 |
J.DOW |
Electronic Stripping Tester |
| Rentention(cohesion) |
kg/ h |
48 |
48 |
PSPC-7 |
Viscosity Tester |
| Weather Resistance |
℃ |
minus10- 120℃ |
minus10-120℃ |
|
|
| Inventory Condition |
----- |
----- |
temperature:25℃ |
|
|
| |
|
|
RH:65% |
|
|
| Insulation Resistance |
Ω |
0.01- 0.06 |
0.01-0.06 |
|
|
| Inventory Validity |
|
|
6 month |
|
|
Application
Electrical shielding mainly relies on the conductive properties of copper itself, which is excellent. While
magnetic shielding foil relies on the conductive substance "Nickel ", which is on the surface of acrylic
adhesive, to achieve a magnetic shielding effect. Copper foil tape is widely used in mobile phones,
notebook computers, and other digital products. Currently, on the market most commonly used copper
foil tape, general test performance is as follows: copper foil tape Material: CU 99.98%.
